Fracturing Truck

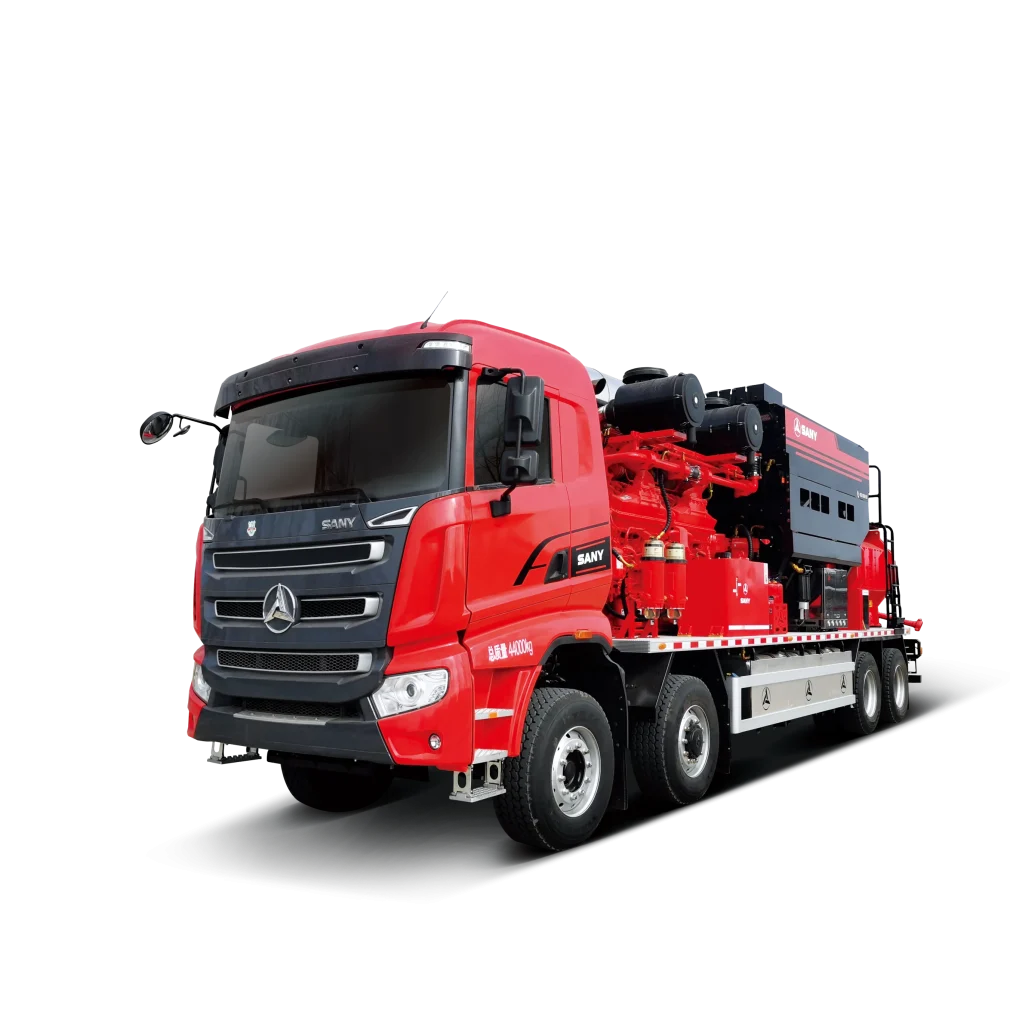

Mechanical Fracturing Truck

  • Max.Pump Operating Pressure: 80.5 MPa
  • Max.Discharge Flowrate: 3.86 m³/min
  • Rated Output Power: 2,500 hp
  1. YLC2300 / YLT2300 / YLQ2300
    YLC2500 / YLT2500 / YLQ2500

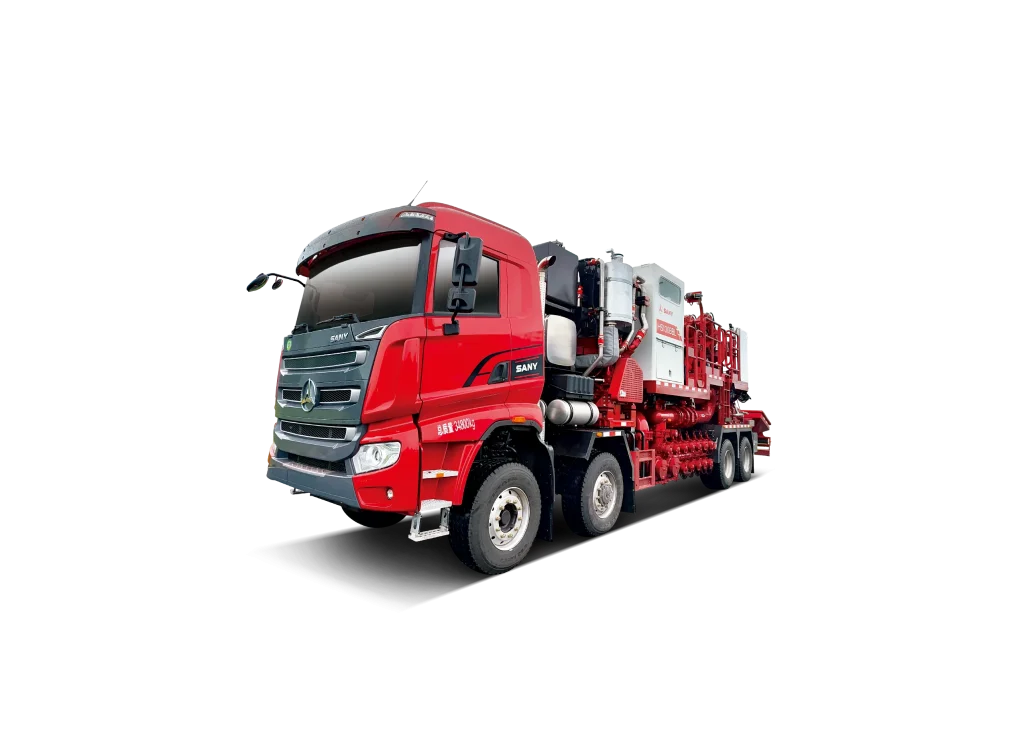

Blender Unit

  • Max.Sand Conveying Rate: 360 m³/h
  • Liquid Additive Flowrate: 30/60/170/300 L/min
  • Max.Discharge Flowrate: 20 m³/min
  1. HSC100 / HST100 / HSQ100
    HSC130 / HST130 / HSQ130

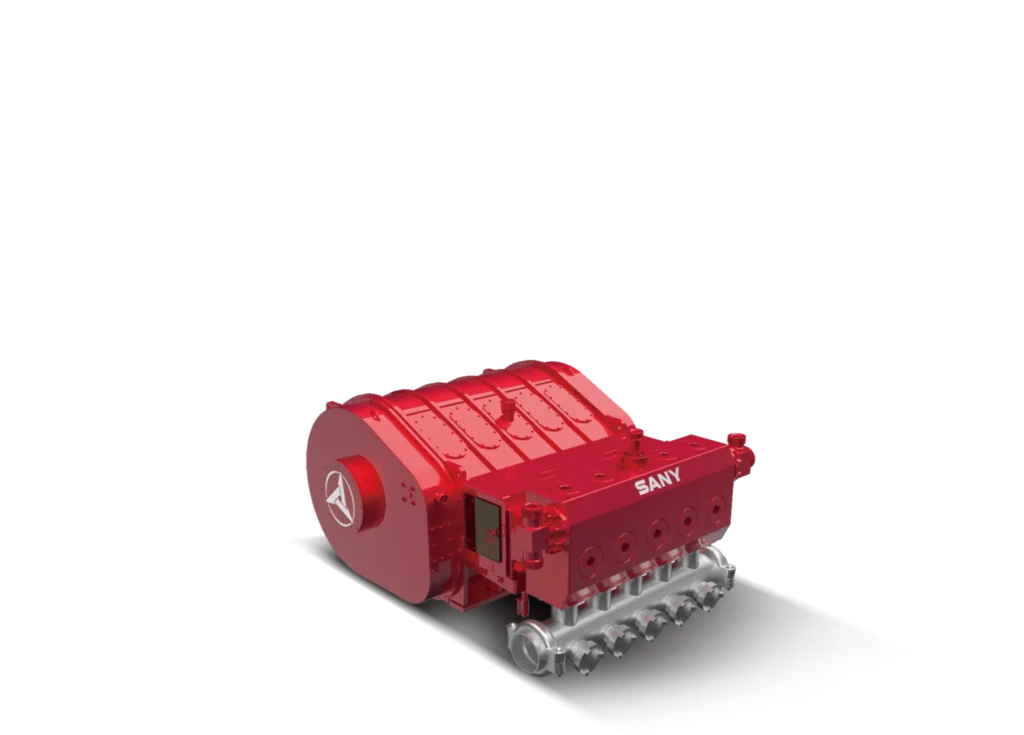

Frac Pump

  • Maximum Brake Horsepower Input: 2500 BHP
  • Rod Load: 238000 Ibf
  • Maximum Working Pressure: 15000 psi
  1. SQP2500MEX

Data Van Unit

  • Engine: WP9H310E62
  • Generator: 15kVA
  • UPS（KVA）: 2
  1. YBC24
  2. YBT24
  3. YBQ24

Coiled Tubing Unit

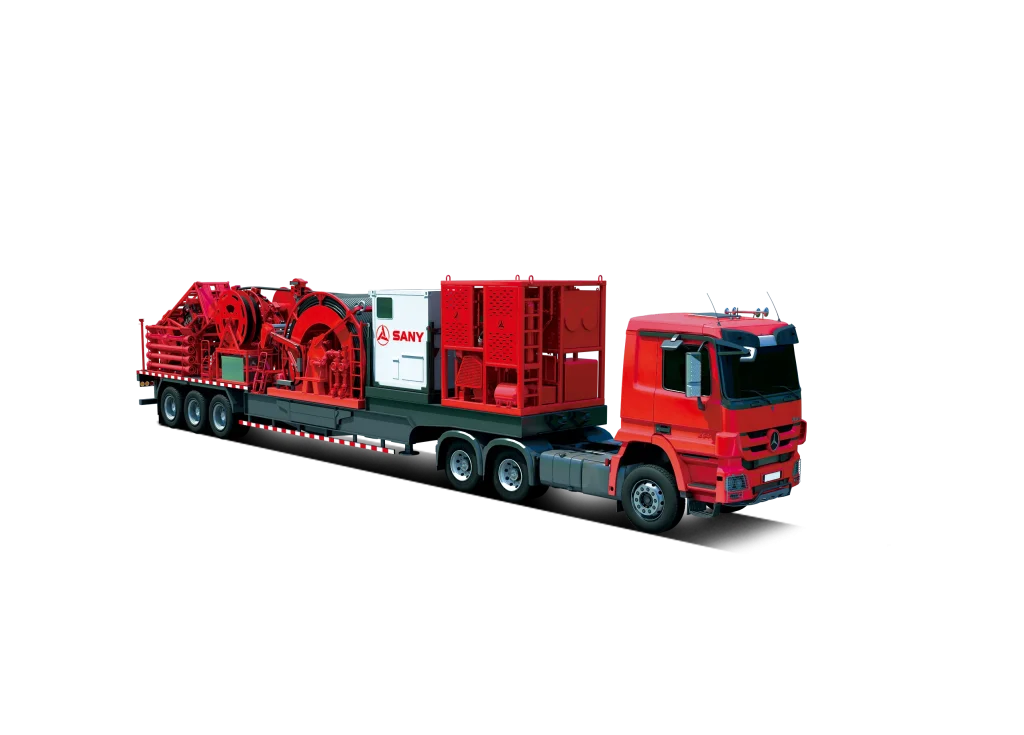

Coiled Tubing Unit

  • Continuous Pulling Capacity: 140,000 Ibs
  • Continuous Snubbing Capacity: 70,000 Ibs
  • Reel Capacity: 2.375″-6500m 2″-9000m
  1. LGC360 / LGT360 / LGQ360
    LGC450 / LGT450 / LGQ450
    LGC630 / LGT630 / LGQ630

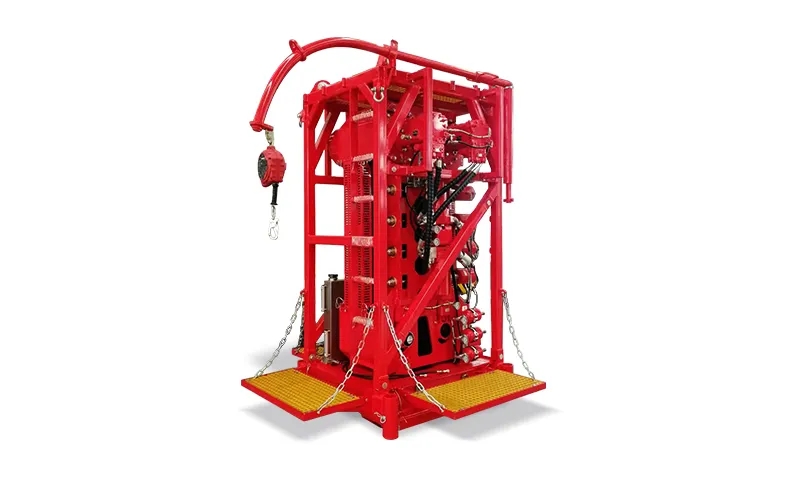

Coiled Tubing Injector

  • Max. Pulling Force: 150,000 Ibs
  • Continuous Pulling Capacity: 140,000 Ibs
  • Continuous Snubbing Capacity: 70,000 Ibs
  1. ZRT-60K
  2. ZRT-80K
  3. ZRT-100K
  4. ZRT-140K

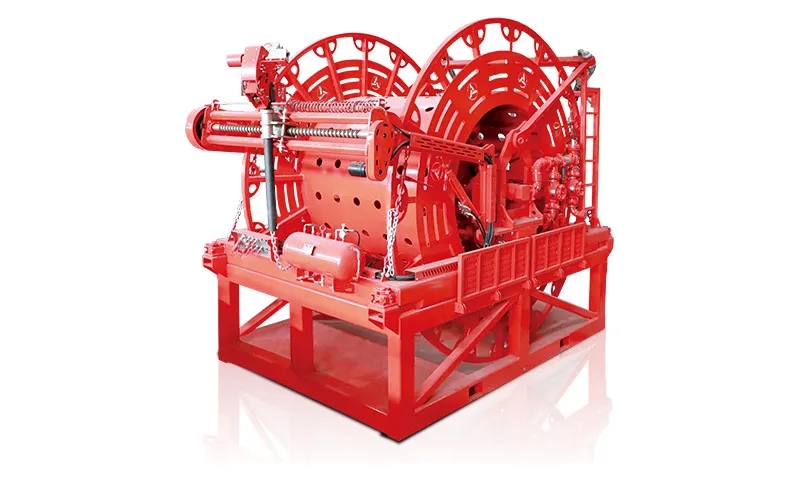

Coiled Tubing Reel

  • Applicable Max.Tubing Capacity: 2.875″-3800m 2.375″-5400m
  • Max. Operating Pressure: 15,000 psi
  • Max. Operating Speed: 8~10 rpm
  1. GT116-80-86
  2. GT148-80-86
  3. GT166-90-95
  4. GT166-100-95
